Flower Crate-HOREN

Flower Crate

VideoBrochuresSpecifications

Inquiry

Horen Group,Flower Crate,Your moving garden

Efficient ventilation.Six-way ventilation, keep flowers natural and fresh.

360° Efficient ventilationPerforated side panels on four side and lid to optimize air circulation and maximize the effectiveness of chiller trucks and cold stores, temperature and longer shelf life.

Optimized

200

Ventilation Holes

High loading capacity, low damage loss.Carton packaging for fresh cut flowers are vulnerable to damage arising from squeezing and pressure. But HOREN’ flower folding crates’base and side panels are reinforced by rims to avoid twist effects and more robust to load more.

Flower Crate,High loading capacity, low damage loss

MAX45kgUnit load

MAX20mmThickness of base and long-side panels.

Full-flip cover, fresh retainer. The flower crate is equipped with a full-flip cover to keep fresh flowers from cold wind and retain their moisture and freshness.

The full-flip lid offers extra support for the crate, designed for protecting fresh cut flowers from being damaged during transportation, suitable for more complex transport and storage scenarios. It is also easy to operate, convenient for users.

Woven belts.Strapping, only one person to operate.HOREN has invented an adjustable woven belts that can be operated by a single person, and to keep flower safety during transport, avoid being bumped. This means improved operating efficiency and reduced damaged loss.

Enhanced Lock Mechanism.Ergonomic handles are designer with enhanced locks, easy to fold and erect by a single hand.

Enhanced locks.Easy to fold and erect,labor saving.

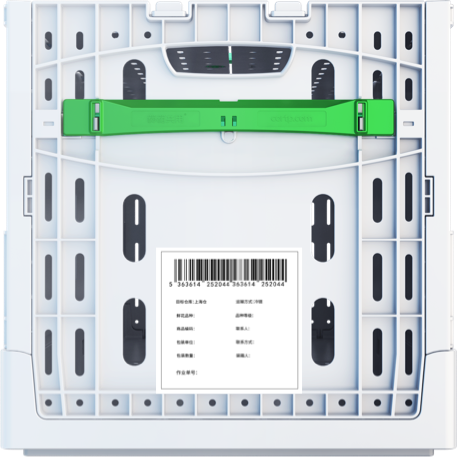

Label sticker area.On four side panels with dimples , easy to remove.

High folding ratioLower trip cost for long transport with efficient folding rate of 4:1.

High reliabilityInternationally authoritative certifications, robust beyond imagination .HOREN Flower Crate has passed the general simulation performance test for packaging (ISTA-3E) and the D4169 - 08 Performance Testing of Shipping Containers and Systems by the International Safe Transit Association (ISTA) and the American Society for Testing and Materials (ASTM) respectively. Its product reliability and high quality are well-proven.*

Environmental treatmentKeep for 72 hours at 0C

Four-side impactFinal velocity 1.22m/s, full pallet

Free-fallSingle crate free falls with bottom surface 3m above the ground

Random vibrationUnder truck mode set Grms=0. 52 and perform 180min random vibration test at 1-200Hz, two-pallet stacking

Stacking compressionPlace single crate in the center of the pressure platform, pressurize F=Wtx(S-1)xFXJ for 1 hour, where Wt is the total weight of a single full-load crate, S is the number of layers, F is the safety factor4. 5, and J is the gravity constant=9. 8N/kg

Flower CrateFlower Crates. Wide application:roses, lilies, bluebells, sunflowers, hydrangeas, Chinese roses, chrysanthemums, carnations, African daisies, flamingo flowers, etc. (flowers with stems).

Full-flip cover

superior ventilation

High folding ratio

Reduced losses and costs

Ergonomic handles

Pressure resistance and anti-collision

CHECK THE TECHNICAL DATA

Inquiry
