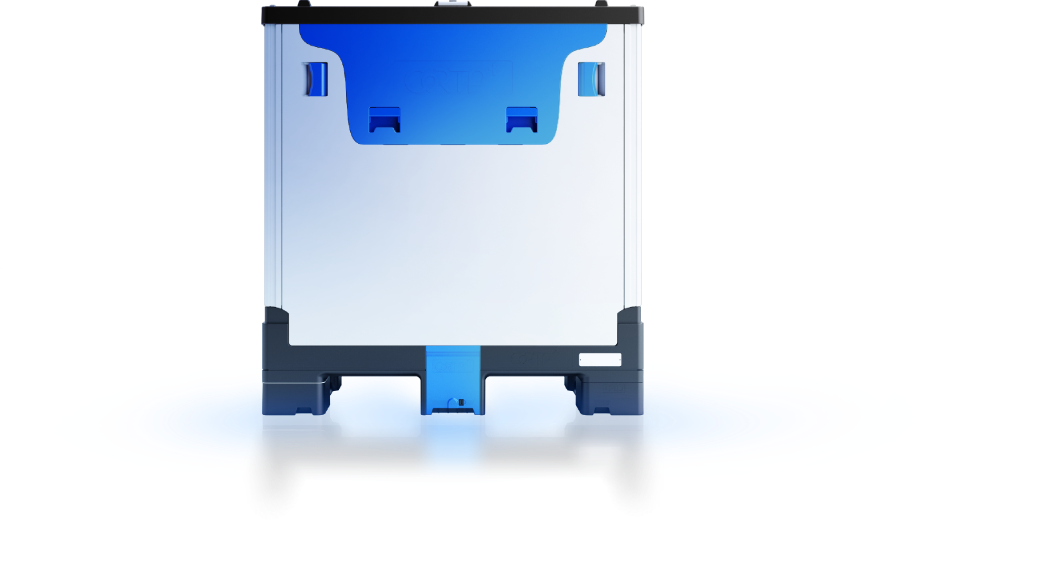

OptiFlow OF330

Thinner, stronger.

About AAR+

%Larger volumeThroughput scenarios.

OF330 comes with a loading capacity of up to 1249L,20% more internal volume than a regular plastic folding IBC*. Its standard footprint is suitable for the North American market, also an ideal choice for liquid transport and storage in high throughput scenarios.

High reliabilityInternationally Authoritative Certifications.

OF330 has passed the general simulation performance test for packaged-products(ISTA-3E) by the International Safe Transit Association (ISTA), and also obtained the quality and reliability certification from the world's leading certification company SGS*.

Compression testPressurize at 15 tons and hold for 1 hour and then release.

Incline impact testImpact the four side panels of the product respectively at a final velocity of 1.1m/s.

Atmospheric conditioning TestKeep for 72 hours at the extreme temperatures of -20°C and 50°C.

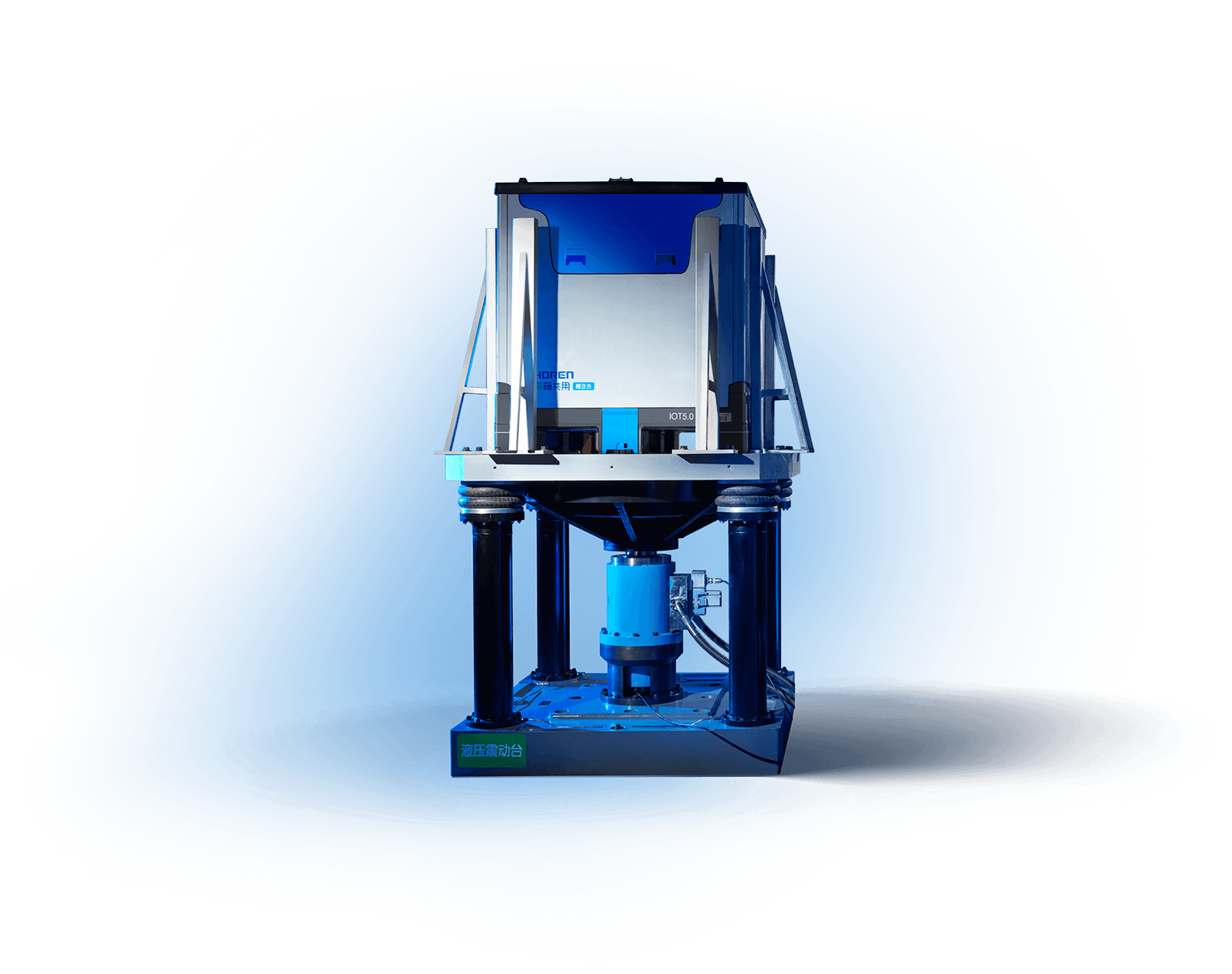

Random vibration testUnder road transportation mode in a conventional shock absorber truck, set Grms=0.54 and perform 4-hour random vibration test at 1-200Hz.

Rotational edge drop testDrop height 200mm full loaded. lift the opposite edge by 90-100mm, and test 2 short edges. (the side with and without the door) and 1 long edge at the bottom of the IBC IF1040.

4:1 Folding ratioThe eternal measure for foldable IBCs.Folding ratio is a key indicator of large collapsible containers. OF330’s high folding ratio allows it to stand out among all plastic folding IBCs on the market.

Double smooth surfacesA balance between Aesthetics & Functionality.The innovative double internal-external smooth surface design allows easy cleaning and dry.

OF330Benefits at a glance.

OF330 VS IBC Tank

Reduced costs. The foldable containers save more than two-thirds of storage and transportation space, effectively reducing return logistics costs.

Long service life. OF330 can be recycled and serve for up to 10 years, compared with the regular IBC tanks of 2-3 years’ service life.

Easy cleaning. In contrast to regular IBC tanks, with a high cleaning cost, OF330 is easy to clean, and does not produce large amounts of waste water.

Lower crusting risks. The liner can be compressed to create a vacuum space during discharge, and partial discharge can also prolong their shelf life.

Reduced discharge residue. More thorough discharge ensures reduced liquid residue in the liner.

OF330 VS Wooden Container

Reduced costs. OF330 can be recycled and serve for up to 10 years, *saving costs for users and also producing less packaging waste.

Manual operation. OF330 features a stable structure, and it is easy to fold and unfold, saving manual labor in operation.

Easy cleaning. The exclusive smooth double surface design ensures hygiene and easy cleaning, which leads to lower possibility of dust pollution, bacterial contamination, or insect attack.

Easy usage. The innovative drop door on the short front panel makes liner installation easier.

Low operational risk. The OF330 is both filled and discharged at the container bottom, reducing the risk of misoperation, and the sump is equipped with a stable valve or flange.

OF330 VS Metal Barrel

large capacity. Each OF330 is equivalent in capacity to 4-5 metal barrels, which effectively saves time for manual operation.

Convenient manual operation.OF330 is fitted with a stable base for high handling efficiency.

Reduced footprint space. OF330's cubic construction maximizes space use in any transportation and storage tool, while round metal barrels tend to waste a lot of space.

Reuse. In contrast to disposable metal barrels, OF330 can be reused for about 10 years.

High security. OF330 protects products in a stable manner, with high safety and reliability factors.

OF330 VS Paper Container

Reduced costs.OF330 can be reused and serve for up to around 10 years, saving costs for users and also producing less packaging waste.

Manual operation. OF330 features a stable structure, and its plasticity from plastic materials makes the container easy to fold and unfold, saving manual labor in operation.

Easy cleaning. The exclusive double smooth surface design ensures hygiene and easy cleaning, which reduces the possibility of dust pollution.

Easy use. The innovative drop door on the side panel is designed for easy liner installation.

Low operational risk. The sump is equipped with a stable valve or gland, reducing the risk of misoperation.

OF330 VS Metal IBC

Reduced costs. The double smooth surfaces produced using a special process effectively protect the liner without extra protective layers.

Lightweight and easy operation. OF330 is over 50% lighter than metal IBCs, making manual operation easy.

Easy cleaning. The smooth double surface design ensures hygiene and easy cleaning, which leads to lower possibility of rust or pollution.

Low maintenance costs. Metal IBCs are susceptibility to de-soldering and other defects, while OF330 is made from plastic and foldable, which means lower maintenance and repair costs.

Easy installation.The plastic foldable OF330 features an innovative drop door for easy liner installation, coupled with a more user-friendly sump + valve combination.

Safe logistics as top priority.

User-friendly design.

Innovative locking pin for speedy handling.At the same time as securely locking the container,the innovative locking pin is also far easier to other pins on the market.

Non-sequential folding.Our patented new hinge enables tool-free installation and disassmbly of side panels.The innovative connection structure allows users to fold non- sequentially and erect with ease.

Automatic water discharge, simple cleaning.The base is designed with an inclined surface, allowing excess liquid to naturally flow into the sump and discharge through the sump port, eliminating residue in the container.

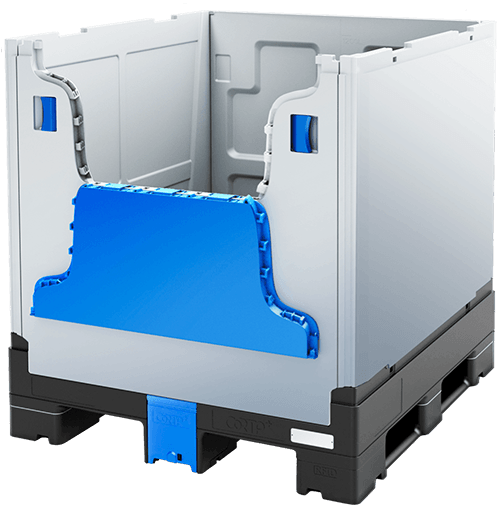

Drop door for easy liner installation.The OF330 features a drop door, which makes it easy to install the liner for bottom discharge.Simply pull it up to open,and press it down to lock,allowing for convenient and effective liner installation and removal.

IBC OF330

1249L capacity

Folding Ratio 4:1

Innovative Double Smooth

Anti-slip base

Drop door

Automatic water discharge

Tamper evident

Technical Data for FC330

CHECK THE TECHNICAL DATA

Inquiry

Learn more hot selling accessories.

RRSUnder 0.1% Residual.

Liner bagHands-free Filling.

ValvesDN50 with different Models.

FittingsFamily of All Accessories.

All the data on this website is provided by HOREN unless otherwise stated. *Full load: Only when the liquid density ≤ 1.35g/cm³. *High reliability test: All tests are tested at HOREN’s standard labs in simulation of the conditions required by ISTA and ASTM. *Traditional non-foldable IBC: Non-foldable plastic IBC tanks in general on the market with dimensions of 1200x1000x1145mm. *Regular plastic foldable IBC: IBCs on the market under Asian and European standards and with dimensions of 1200x1000x1140mm and volume of around 1000L. Thus IBC OF330, with a volume of 1249L, is about 25% larger. *Two-thirds: The volume of a folded IBC is approximately 1/3 of that when unfolded. So compared with a non-foldable container of the same size, 2/3 of the storage space is saved for return transport. *Three-quarters: The volume of a folded IBC OF330 is approximately 1/4 of that when unfolded. So compared with a non-foldable container of the same size, 3/4 of the storage space is saved for return transport. *Service life of up to 10 years: Measured in accordance with the limited conditions in HOREN’s standard labs. *TE pin: Available upon request and purchase. *Heater pad: Available upon request and purchase. *7.6:1: The ratio of the volume of an erected KingKong RPC to that when folded is approximately 7.6:1. *31%: Obtained upon measurement of multiple products under the same conditions of compression test in HOREN’s standard labs. *No Crate Change: Goods stored in HOREN’s crates can be directly transported from farm or place of origin to market for display and sale, without the need to change to new crates. *0.1%: In HOREN’s standard lab environment, 1000kg of 300,000-cP viscous liquid, after being discharging, leaves residues weighing <1kg. *Hands-free: After RRS and liner are installed, no more manual operation is needed during the discharge process. *Folding ratio 3:1: The ratio of the volume of an erected FLC KF975 to that when folded is approximately 3:1.
