Unit-based packagingCombine and expand for higher efficiency.You can combine EUO crates with a pallet and a lid into a unit, thus expanding load capacity in an easy, inexpensive and efficient way. Bespoke dunnages can reduce the QC risk and loss of parts during transportation, providing a foundation for integrated management.
Ergonomic designSafe and stable from inside to outside.

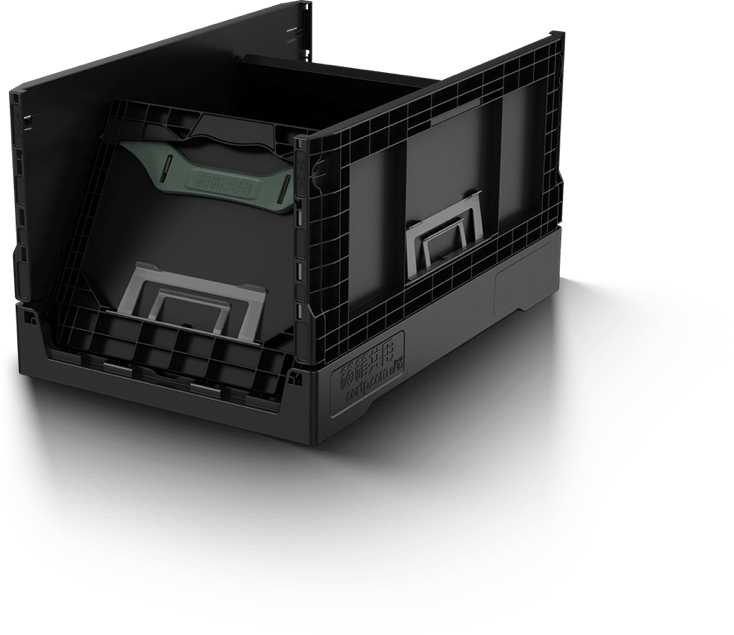

Non-sequential foldingInnovative occlusionIntegrated lockLabel clip

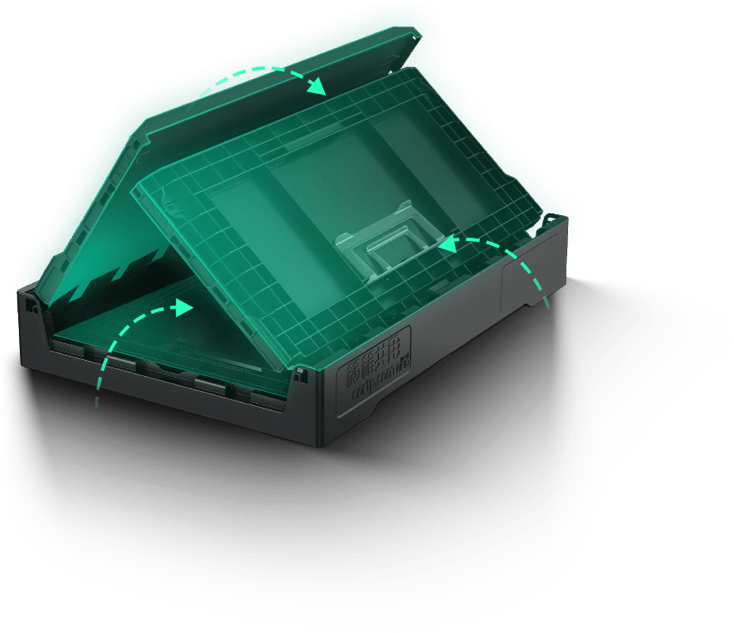

Thanks to its modular design and a new hinge structure, the MagiCub EUO crate makes non-sequential panel folding possible. By simplifying folding, it reduces human labor and improves the overall operating experience.
High reliabilityInternationally authoritative certifications.The MagiCub EUO crate has passed the general simulation performance test for packaging (ISTA-3E) and the D4169 - 08 Performance Testing of Shipping Containers and Systems by the International Safe Transit Association (ISTA) and the American Society for Testing and Materials (ASTM). Its product reliability and high quality are well proven.
Free-fall dropFull load, single crate, three free-fall drops from 1.2m.
Crush test.No load, single crate, the upper pressure plate of the pressure tester pressurizes at a speed of 13mm/min until the sample is crushed.
Compression test.Place in the center of the pressure platform, and pressurize F=Wts(S-1)xFxJ for 1 hour, where Wt is the total weight of a single full-load crate, S is the number of layers, F is the safety factor=3, and J is the gravity constant=9.8N/kg.
Free-fall drop at low temperature.Condition a no-load crate at -20°C for 48 hours, and drop it from the height of 1m; for each time the sample passes the test, the height is increased by 0.3m.
Horizontal impact.Two-pallet stacking, impact the 4 sides at a final velocity of 1.1m/s.
Vibration test.Two-pallet stacking, set Grms=0.54 and perform a 4-hour random vibration test at 1-200Hz.
EUO Crates
Easy to fold and unfold
Foldable, saving space for return transport
Integrated supply chain service
Flexible combination, pallet-based transportation
Adapted to automotive conveying systems
Combine and expand for higher efficiency
CHECK THE TECHNICAL DATA
